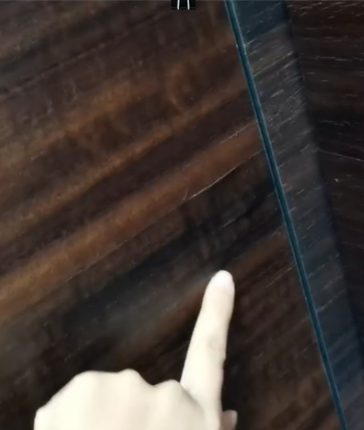

A guide to Preventing cracking of Wood Veneer by Deep Heat Pressing, including key solutions

In the production of custom furniture, the hot-pressing wood veneer process can endow furniture with natural texture and feel, but wood veneer cracking (during hot-pressing or after painting) often affects quality and efficiency. The following are the causes of cracking, solutions and recommended suitable adhesives.

I. Core Causes of Wood Veneer Cracking

1. Excessively high hot pressing temperature: When the temperature exceeds the suitable range (such as being above 120℃ for a long time), the wood veneer loses water rapidly and the internal stress surges sharply. After exceeding the tolerance limit, it cracks.

2. Excessive hot pressing time: If the conventional wood veneer (which takes 2 minutes) is extended to 5 minutes, it will continuously shrink, damage the fiber structure, lose flexibility and crack.

3. Inaccurate temperature measurement of the press: Temperature display failure (such as showing 80℃ but actually showing 100℃), which leads to staff misjudging parameters and increases the risk of cracking.

4. Wood veneer/glue issues: The wood veneer is thin (weak stress resistance) and has inherent fine cracks. Non-compliant glue (insufficient adhesion) or uneven or insufficient application of glue can both cause cracking.

Ii. Targeted Solutions for Cracking Prevention

1. Temperature control: Mainly within the range of 70-95℃ : At this temperature, the wood veneer can fully blend with the glue, reducing shrinkage and cracking. It needs to be fine-tuned according to the type of wood veneer and glue.

2. Time control: 1-3 minutes is the standard value. Use fast-drying glue first to shorten the time. If an extension is required (such as to 5 minutes), the temperature should be simultaneously reduced to around 70℃ to balance the contraction.

3. Regular maintenance of the press: Use a professional thermometer to compare the actual temperature of the steel plate with the displayed value. Calibrate or repair when there is a deviation to avoid misjudgment of parameters.

4. Select high-quality adhesives: Prioritize products with a solid content of ≥40% (high thermal strength and long-lasting adhesion), and recommend environmentally friendly one-component adhesives (no need for complex mixing, uniform and stable application).

5. Professional team support: Relying on a team deeply engaged in craftsmanship, we customize exclusive solutions (combining the characteristics of wood veneer and base materials) to efficiently solve cracking problems.

Iii. Recommended Product: Fushen Hot-Press Adhesive

In line with the core demand for crack prevention, we recommend Fushen Environmental Protection's one-component hot-press adhesive GW-6528A. Its advantages and compatibility with process pain points:

Core performance meets the standards: Solid content ≥40%, high thermal strength, capable of providing strong and long-lasting adhesion between wood veneer and substrate, avoiding cracking caused by insufficient adhesive force.

2. Convenient and environmentally friendly to use: With a single-component design, no additional blending is required. The adhesive application is uniform and stable, reducing potential risks caused by improper application, while meeting the requirements of environmentally friendly production.

3. Professional Matching Guarantee: The Fushen team has been deeply engaged in the wood veneer process for nearly 20 years. They can provide suggestions for selecting adhesives and exclusive hot-pressing solutions based on the wood veneer materials (conventional/special), base material characteristics, and production needs of furniture factories. This approach reduces the cracking rate from both the "adhesive" and "process" dimensions, enhancing product quality and production efficiency.
