Difficulties in beech wood paneling and solutions for glue application

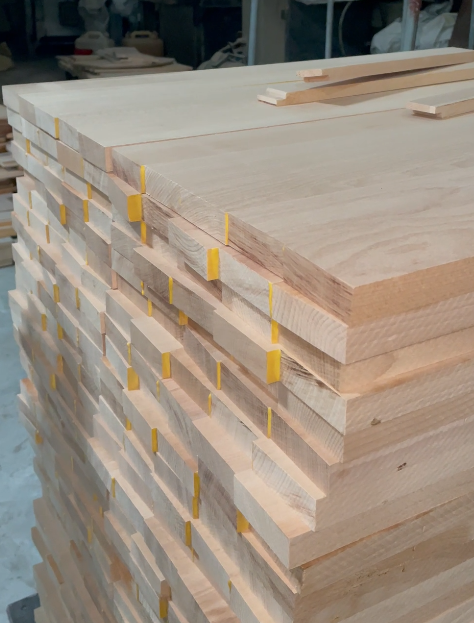

Beech wood panels have high wood hardness and a high risk of cracking. So, what are the difficulties of beech wood panels? What kind of glue should be used for splicing the boards?

1. It is difficult to control the moisture content and release stress

Beech (especially European beech) has a high density (air-dry density about 0.63-0.79g/cm³), is hard and has a dense structure. When the moisture content changes, the shrinkage/expansion amplitude is relatively obvious (the difference in radial and tangential shrinkage rates is about 1.5 times). If the wood is not thoroughly dried before splicing (the moisture content does not reach the equilibrium moisture content of the usage environment), or if the moisture content difference between different boards exceeds 2%, cracking, warping or gaps are likely to occur after splicing due to uneven internal stress.
In addition, during the growth of beech wood, internal stress may exist (such as at tree nodes and distorted grain areas). If the stress is not released through natural storage or steam moisture regulation before paneling, it will be concentrated at the joints due to the influence of environmental humidity later, leading to structural failure.

2. The processing accuracy requirements for the splicing surface are extremely high

Beech wood has a high hardness (with a compressive strength along the grain of about 60-70 mpa). When processing splicing surfaces (such as straight edges of flat splicing, tenons/mortises of finger-jointed joints), it is prone to surface roughness, chipping or unevenness due to tool wear or improper control of feed rate.

When splicing panels, the flatness of the splicing surface should be controlled within 0.1mm/m; otherwise, the gaps will cause the bonding to fail.

When finger-jointing, the fit accuracy between the tenon and the mortise is strictly required (the tolerance should be ≤0.05mm). In hardwood processing, the cutting tool is prone to slight offset, resulting in a loose fit.

3. Poor compatibility of the bonding process

The cell structure of beech wood is dense, and its vessels and wood rays are relatively fine, making it difficult for glue to penetrate deeply. Relying solely on surface bonding is prone to "false adhesion" (surface curing but no internal bonding). If the type of glue is not properly selected (such as ordinary woodworking glue) or the amount of glue applied is insufficient, it is easy for the glue to come apart in the later stage due to external force or changes in humidity.
In addition, when bonding, pressure should be applied to ensure that the joint surfaces fit together. However, beech wood is hard, and if the pressure is too small, the gaps will remain. If the pressure is too large (especially for thin boards), it is easy to cause the wood fibers to crush or the edges to wrinkle. The pressure needs to be precisely controlled (usually 8-12kg/cm²), and a longer curing time (more than 24 hours) should be combined.

4. The matching of texture and color is difficult

Although the grain of beech wood is mainly straight, some parts of the wood have wavy grain and landscape grain, and the color difference between the heartwood and sapwood is obvious (the heartwood is light reddish-brown, and the sapwood is light yellowish-white). When assembling panels, it is necessary to select those with consistent texture directions and natural color transitions; otherwise, there will be "two-faced" or messy textures, which will affect the appearance. Especially for high-end furniture panels, it is often necessary to compare each piece one by one, which greatly increases the time and cost of material selection.

5. The problem of stress balance in large-area panel assembly

Beech wood is often used for large-sized components (such as tablecloths and cabinet doors). When the width or length of the panels exceeds 1.2 meters, if the contraction/expansion directions (radial vs tangential) of each panel are not reasonably arranged, it is prone to overall warping due to "anisotropy". For instance, if multiple boards are all joined at the tangential section, when the environmental humidity drops, the entire board will contract towards the center, causing the edges to curl upwards. If radial/tangential plates are mixed, the joint is prone to tearing due to the difference in shrinkage rate.

Then what kind of glue is suitable for joining beech wood, which is particularly hard? Here we suggest using the special beech wood panel adhesive GW-1505J from Fushen.

This glue is developed in response to the significant deformation of beech wood due to water absorption and loss, and its water resistance rating can reach D4, making it highly suitable for beech wood paneling processes.

Of course, the solid wood paneling process not only has requirements for glue! The craftsmanship and procedures during the panel assembly process are also very strict. From material selection to cutting, to the control of wood moisture content and the blending of glue, all these aspects require meticulous attention to detail. Therefore, for beech plywood, every process must be meticulously and strictly controlled to minimize the risk of cracking to the greatest extent.

Fushen was founded in 2005. As a brand under Guangdong Fushen Chemical Co., LTD., Fushen woodworking Adhesive focuses on the research and development of woodworking adhesives and is known as the "Expert of wood veneer adhesives in China". Its combination of environmental friendliness and performance provides reliable support for wood product processing, covering water-based environmentally friendly single-component, characteristic high-performance wood veneer adhesives, panel gluing adhesives, assembly adhesives, and pressing adhesives, etc. Integrating R&D, production and sales.
